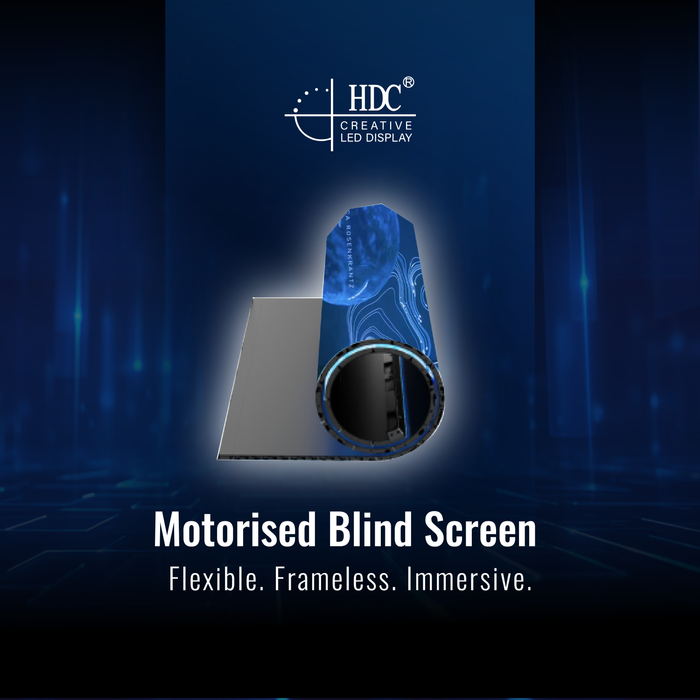

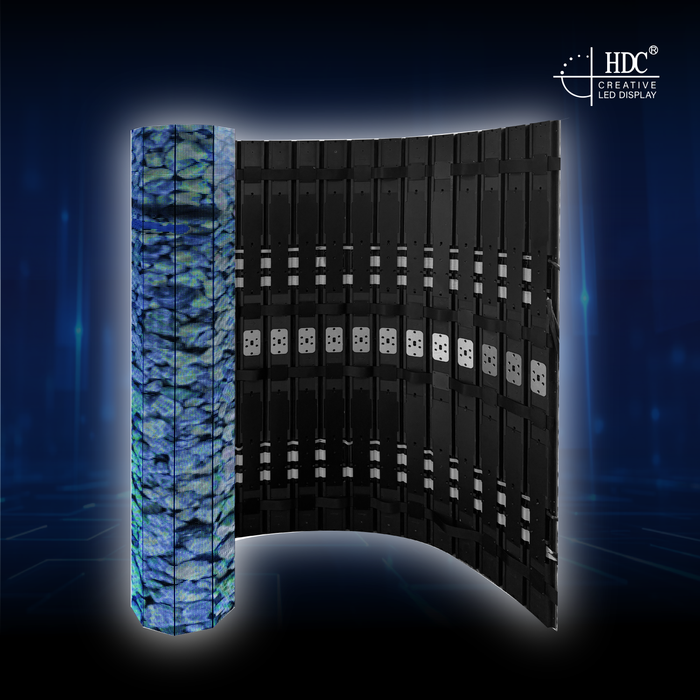

Motorised Blind Screen
)
)
)
)
Features and benefits
- Ultra Thin & Lightweight Design
- Seamless High Definition Display
- Load-Bearing Capacity og 3000kg/m²
- Rugged & Durable Build
- Safe Low-Voltage DC Input
- Ultra-Wide Display
Specifications
Model: M0026
Pixal Pitch (mm): 2.604
LED Configuration: SMD1415/1515
Module Resolution: 147456 dot/m²
Module Dimension (mm): 500x62.5x17
Cabinet Resolution (dots): 192x24
Cabinet Dimension (mm): 500x1000x17
Contrast Ratios: 24 s
Brightness (cd/m²): 400-800
Max/Avg Power: 510/170
Viewing Angle: 140°~160°
Operating Voltage: 24-48V AC 50-60Hz
Refresh Rate: 3840Hz
IP Rating (Front/Rear): IP53/IP21
Maintenance mode: Black maintenance
Max Load-Bearing: 2000 Kg
