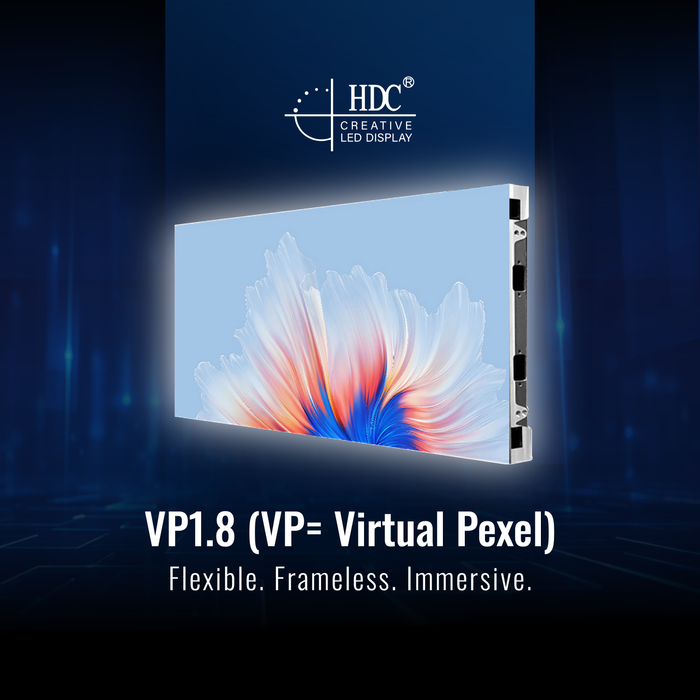

VP1.8 (VP=Virtual Pexel)
)
)
)
)
Features and benefits
- R-G-G-B for Higher Dot Mapping Matrix
- Clarity of a P0.9 Module through Pixal Density
- Lowers Cost with Pixel Dots
- 320mm x 160mm Module for Easy Upgrade
- Improves Resolution and Image Displays
- Seamless High Definition Display
Specifications
Model: Virtual P1.8
LED Type: 1R2G1B
Pixel Pitch (mm): 1.86
Module Resolution (dots): 172x86
Module Dimension (mm): 320x160x18
Contrast Ratio: 6000:1
Pixel Count: 288905
Brightness (cd/m2): ≥200-800
Refresh Rate (Hz): ≥3840
Horizontal Viewing Angle: 140±10°
Vertical Viewing Angle: 140±10°
Brightness Uniformity: 98%
Average Power Consumption (W/m2): 200
Operating Voltage: AC200-240V (47-63HZ)
Drive Mode: Constant Current 1/43
Operational Temperature: -10~+40°C
Lifetime (hours): ≥100000
