Available in 1.53 mm, 1.86 mm, 2.0 mm and 2.5 mm pixel pitches, the Hera Series delivers fine-pitch clarity for close-range viewing. It supports brightness of up to 800 nits, a 7,680 Hz refresh rate and 14- or 16-bit grayscale for smooth motion, natural gradients and consistent indoor visual performance.

Each cabinet measures 320 × 480 mm and weighs approximately 2.3 kg, allowing easier handling through corridors, meeting rooms and other restricted indoor spaces. Magnetic-assisted cabinet and module alignment supports faster positioning, while a dedicated adjustment tool enables precise levelling without removing and reinstalling complete sections.

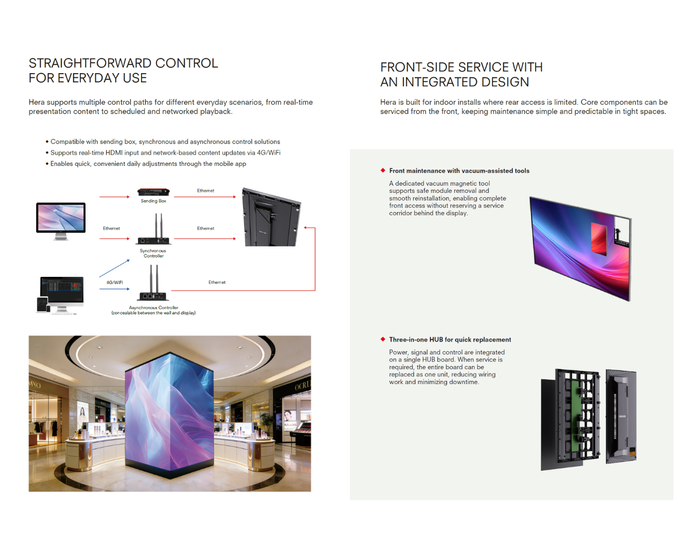

The Hera Series is designed for front-side maintenance where rear access is limited. LED modules can be removed using a vacuum magnetic tool, while power, signal and control are integrated into a three-in-one HUB board that can be replaced as one unit to reduce service time.

Hera supports synchronous and asynchronous control solutions, real-time HDMI input and network-based content updates through 4G or Wi-Fi. Daily adjustments can also be performed through a mobile application.

Optional SolidSkin technology adds a reinforced protective layer over the LED surface, helping resist moisture, dust, salt mist and incidental contact. It also improves display flatness and visual uniformity while reducing moiré in camera-facing applications.

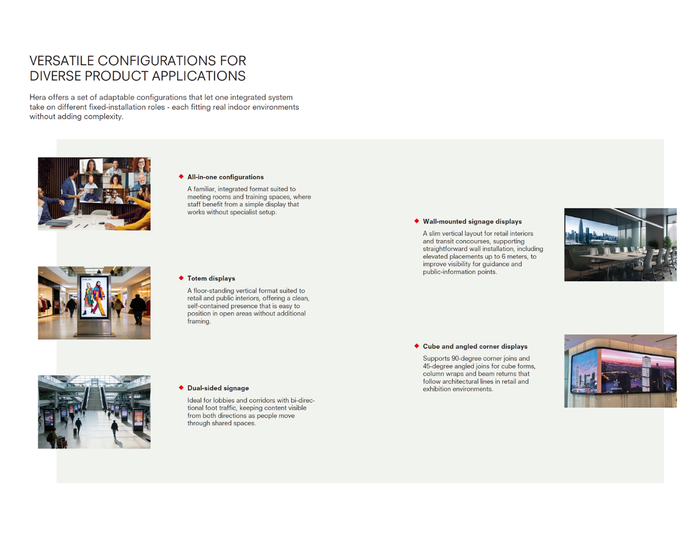

The system supports several fixed-installation formats, including all-in-one displays, wall-mounted signage, freestanding totems, dual-sided displays, 90° corners and 45° angled configurations for cubes, column wraps and other architectural applications.
