INFiLED NX Series
)
)
)

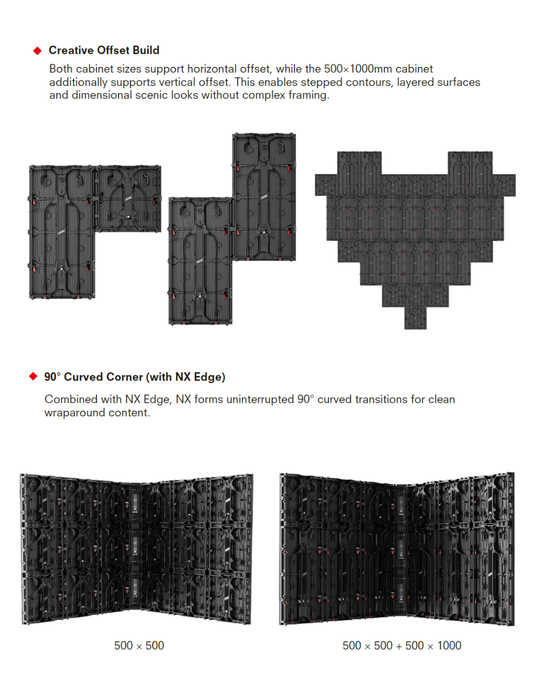

Available in 500 × 500 mm and 500 × 1,000 mm cabinet sizes, the NX Series supports seamless flat displays and curved installations from −10° to +15°, adjustable in 2.5° increments. Both cabinet sizes support horizontal offset arrangements, while the 500 × 1,000 mm cabinet also supports vertical offset installation for stepped contours, layered surfaces and dimensional scenic designs.

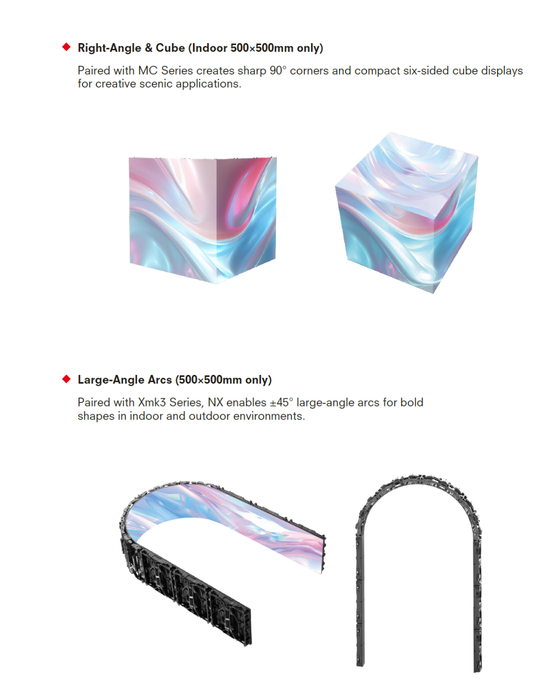

When combined with NX Edge, the system can create uninterrupted 90° curved corners for wraparound content. The indoor 500 × 500 mm cabinet can be paired with the MC Series to form sharp right-angle structures and compact cube displays. It can also be integrated with Xmk3 to create large-angle curved configurations of up to ±45°.
The NX Series delivers a 7,680 Hz refresh rate, 15- or 16-bit grayscale and a contrast ratio of up to 10,000:1. Indoor versions provide brightness from 800 to 1,000 nits, while outdoor versions reach 5,000 nits for use in exposed environments.
Its dual-layer magnesium-alloy structure keeps the cabinets lightweight while maintaining rigidity for repeated installation and transportation. The 500 × 500 mm cabinet weighs approximately 6.8 kg, while the 500 × 1,000 mm cabinet weighs approximately 10.9 kg.
Protective features include bottom positioning pins, an optional integrated corner guard and a raised-edge mask on the indoor P2.5 model. The outdoor version features full encapsulation and an IP65-rated design, while the outdoor P3.9 model includes a clip-on mask for faster front replacement.
Top quick locks, bottom positioning pins and an integrated handle support fast and accurate installation. A unified PDU manages power and signal distribution while reducing connection points. NX supports both stacking and hanging installations, with verified build heights of up to 20 metres for the 500 × 1,000 mm cabinet and 15 metres for the 500 × 500 mm cabinet.
