INFiLED WK Series
)
)
)

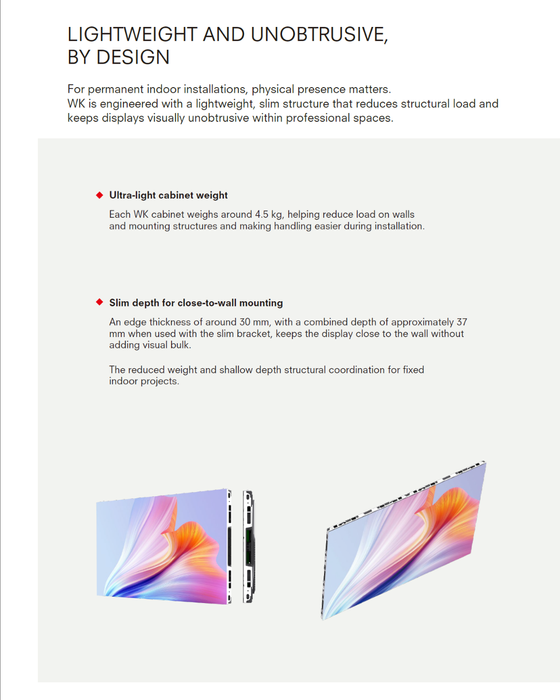

The series is available in pixel pitches from 0.93 mm to 2.5 mm, with Flip-Chip COB, IMD and SMD options. Its slim cabinet structure measures approximately 29.5 mm to 32.3 mm in depth, depending on the configuration. The COB version weighs approximately 3.4 kg per cabinet, while the IMD and SMD versions weigh approximately 5.2 kg.

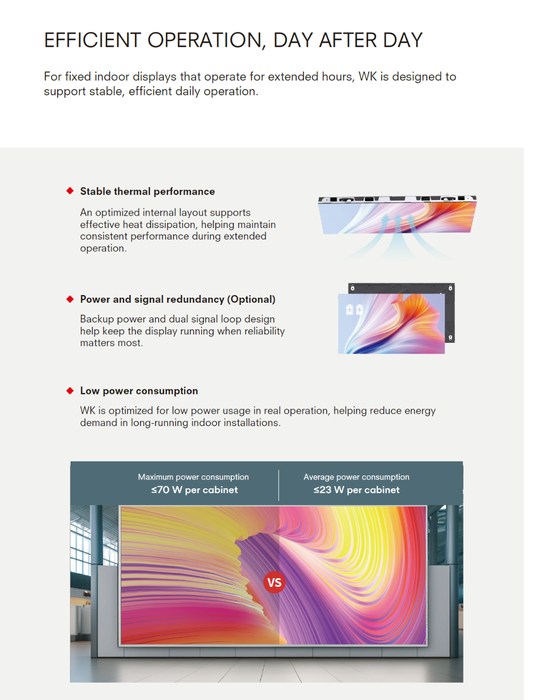

An efficient rear heat-dissipation system supports stable operation and extended product lifespan. Optional backup power and dual signal-loop configurations can provide additional reliability for applications where continuous display performance is important.
The WK Series also incorporates INFiLED SolidSkin technology on selected configurations. This protective surface improves impact resistance, supports easier cleaning, and helps protect the LEDs against moisture, salt, oxidation and static damage. It also helps reduce moiré for more consistent visuals in camera-facing applications.
Designed for straightforward installation and servicing, the WK Series supports front maintenance using a vacuum suction tool. A half-cabinet option measuring 300 × 337.5 mm is also available for more flexible screen layouts. Additional configurations include mobile all-in-one displays, 90° corner displays and curved display solutions.

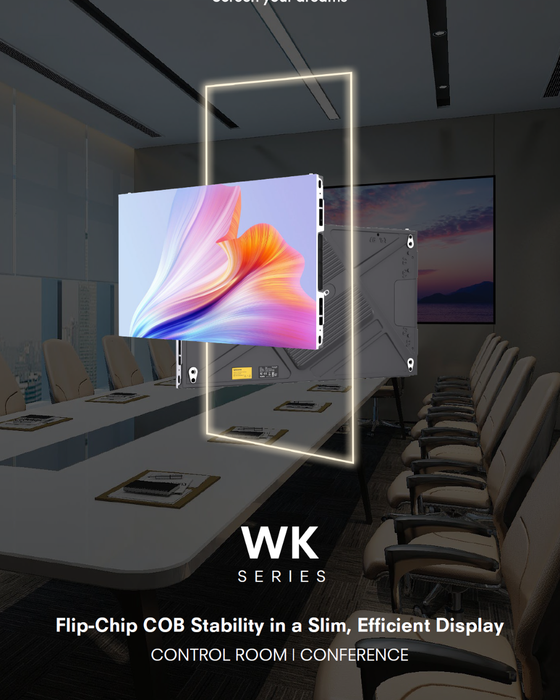

The WK Series is suitable for conference rooms, command centres, subway stations and other professional indoor environments requiring high-resolution and reliable visual performance.
