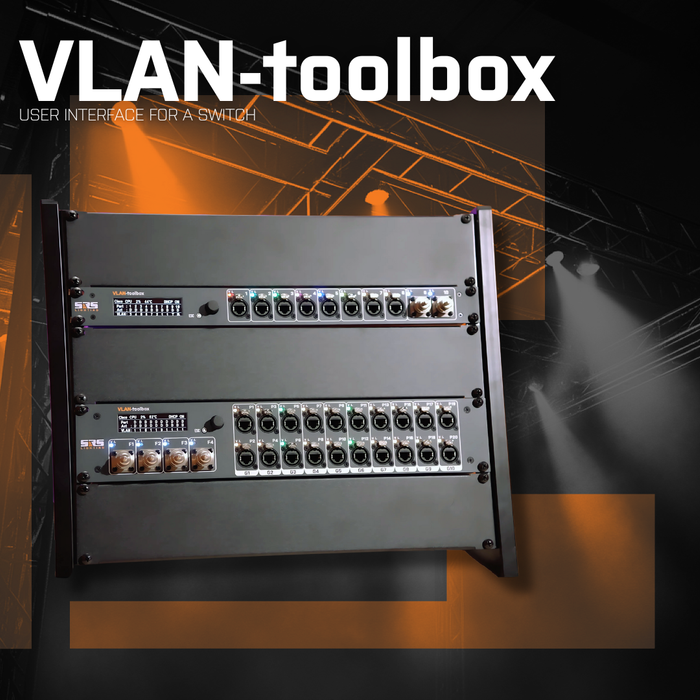

VLAN-toolbox

SRS Group Stand: 2825

The SRS Lighting VLAN-toolbox is a user interface for a switch; very explicitly intended to significantly simplify and speed up controlling the switch.

Features:

  • Simple way to physically separate data streams within a switch for improved performance in terms of data speed and clearer organization in the form of VLANs.
  • Simple, reliable way to apply trunking for data transport between switches.
  • Simple, reliable way to apply link aggregation (linked ports) for high data speeds and/or redundancy.
  • No in-depth knowledge of data networks and IT in general required.
  • Prevents incorrect settings that can lead to blocked access to the switch's controls.
  • Standalone use; no laptop or other external equipment required to make settings.
  • Monitor for power consumption when applying Power over Ethernet (PoE)
  • Monitor for port load
  • Cable tester

SPECS:

  • Dimensions: 483 x 88 x 453 mm (WxHxD)
  • Weight: 11.8 kg
  • Number of etherCON connectors: 24 pcs
    (20 pcs - front & 4 pcs - back)
  • PoE: 195W
  • Number of optical connectors: 4 pcs
  • Types of optical connectors: check the "Variants" section
  • Speed of individual etherCON ports: 1Gb/s
  • Speed of individual fiber ports: 10Gb/s
  • Speed of 4 linked fiber ports: 40Gb/s
